Named Rule : CT A 01- 234 - 567 - 8 9 B |
|
| |
|
|
| |
CT |
: |
the abbreviation of Current Transformer. |
|
| |
A |
: |
the model of Current Transformer. |
|
| |
|
|

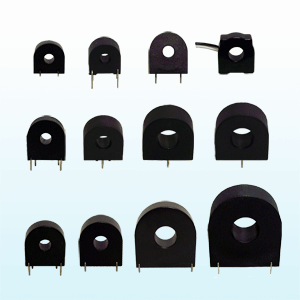

Mini Current Transformer ( C : Circular , U : U type , S : Square ). |
|
| |
|
|
Split Core Current Transformer and Others ( P : Open type & Others ） |
|
| |
|
|
DC Immune Current Transformer ( D ). |
|
| |
|
|
Electric Control Unit Current Transformer ( E ) . |
|
| |
01 |
: |
the serial number of model. |
|
| |
234 |
: |
the outside dimension of case , OD(mm) . |
|
| |
567 |
: |
the meaning of rated current of CT, IR (A) or the primary current of CT, I0 (A) . |
|
| |
8 |
: |
the material of core. |
|
| |
9 |
: |
the serial number of parts. |
|
| |
B |
: |
the accuracy class of CT. ( P : Acc. class ≦ 0.2 , N : Acc. class > 0.2 ) or the type of terminal of CT. ( P : Pin type , L : Lead type , S : Screw type ) . |
|
| |
|
